What Is an MS Angle?

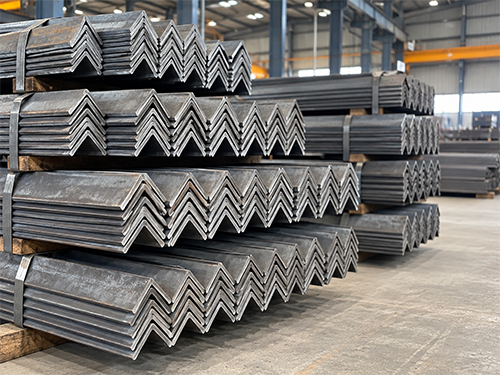

An MS angle, also called mild steel angle or L angle, is an L shaped structural steel section rolled from mild steel billets. The two legs of the angle meet at a right angle, giving the section its characteristic L shape and its strength along both axes. This is why MS angle is also referred to as structural steel angle in engineering and fabrication circles.
If you have ever wondered about MS angle meaning in simple terms, think of it as a steel bracket in continuous lengths, used to frame, support, brace or reinforce almost any metal fabrication project. It is one of the most widely used steel sections in India for gates, grills, staircases, shed frames, transmission towers, machine bases and general construction work.
Common MS Angle Sizes and Dimensions
Choosing the right MS angle size starts with understanding how these sections are measured. An MS angle size is expressed as leg length × leg length × thickness, all in millimetres. For example, a 25 × 25 × 3 MM angle has two equal legs of 25 mm each and a thickness of 3 mm.
Here is a typical MS angle section dimensions chart covering the range manufactured under the SRMB RealEdge brand, all rolled to IS 2062:2011 specifications:
| Size (MM) | Legs | Thickness | Typical Use |
|---|---|---|---|
| 19 × 19 × 3 | 19 mm | 3 mm | Light grill frames |
| 25 × 25 × 3 | 25 mm | 3 mm | Window grills, light gates |
| 25 × 25 × 5 | 25 mm | 5 mm | Light gates, furniture |
| 30 × 30 × 3 | 30 mm | 3 mm | Window & balcony grills |
| 30 × 30 × 5 | 30 mm | 5 mm | Gate frames |
| 35 × 35 × 5 | 35 mm | 5 mm | Staircase frames |
| 40 × 40 × 5 | 40 mm | 5 mm | Main gate frames |
| 40 × 40 × 6 | 40 mm | 6 mm | Heavy gate frames |
| 50 × 50 × 4 | 50 mm | 4 mm | Roof purlin, shed framing |
| 50 × 50 × 5 | 50 mm | 5 mm | Structural bracing |
| 65 × 65 × 5 | 65 mm | 5 mm | Towers, trusses |
| 65 × 65 × 6 | 65 mm | 6 mm | Heavy structural work |
If you are working from an MS angle weight chart, remember that weight per metre rises with both leg length and thickness. A 65 × 65 × 6 MM angle will weigh considerably more per running metre than a 25 × 25 × 3 MM angle, and that difference directly affects both transport cost and the final MS angle section price you pay.
Factors to Consider When Selecting MS Angle Size
Choosing MS angle size is not a one-size-fits-all decision. Here are the main factors that should guide your choice.
1. Load Bearing Requirement
The single biggest factor in MS angle size selection is the load the structure needs to carry. Gate frames, window grills and light decorative work can usually be built with smaller sections such as 25 × 25 × 3 MM or 30 × 30 × 3 MM. Heavier applications like main gate frames, staircase stringers or structural bracing typically call for 40 × 40 × 5 MM and above.
2. Application Type
MS angle for construction purposes, such as roof trusses, tower legs or foundation bracing, generally demands thicker sections with higher tensile strength compared to MS angle used purely for aesthetic grillwork or fencing. Always match the steel angle to the job it needs to do rather than defaulting to a familiar size out of habit.
3. Span and Spacing
The distance between support points changes the required MS angle size. A longer unsupported span needs a larger leg length and thickness to resist bending, while closely spaced supports can often work with a lighter section.
4. Fabrication Method
Welded joints, bolted connections and riveted assemblies each interact differently with a given MS angle size. Thinner angles are easier to bend and shape for decorative grill work, while thicker steel angle for fabrication work involving heavy welding needs enough material to avoid burn through and warping.
5. Local Building Codes and Standards
Structural steel angle used in construction should conform to recognised Indian standards. SRMB RealEdge MS angles are manufactured to IS 2062:2011, which governs the chemical composition and mechanical properties of structural steel used across India.
6. Corrosion Exposure
For grills, gates and railings exposed to monsoon weather, a slightly thicker MS angle size and a good quality finish coat will extend service life considerably compared to the thinnest available option.
MS Angle Price in India: What Affects the Cost
MS angle price in India is not fixed. It moves with raw material cost, transport distance, order quantity and the specific MS angle size you choose. As a general rule, steel angle price India today is quoted on a per kilogram basis, and the total cost of an order depends on the combined weight of all the sections ordered, not just the length.
A few practical points to keep in mind when comparing MS angle section price across suppliers:
- Heavier MS angle sizes cost more per metre simply because they use more steel, even though the per kilogram rate may stay similar across sizes from the same mill
- Bulk orders usually attract better per kilogram pricing than small retail purchases
- Freight adds meaningfully to landed cost, so sourcing from a supplier closer to your site can lower the effective price even if the quoted rate looks marginally higher
- Steel angle price India today can fluctuate week to week with input costs, so it is worth confirming current rates before finalising a large order
Why BIS Certification Matters
SRMB RealEdge MS angles are BIS certified and manufactured at an IMS certified facility holding ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications, and recognised as a Five Star rated Green Steel Producer by the Ministry of Steel. Every batch is rolled from captive billet with tested chemical composition, then passed through automated block mills with tungsten carbide rollers for uniform thickness.
Why BIS Certification Matters When Buying MS Angle
One detail that gets overlooked when people focus purely on MS angle size and price is certification. Steel that carries the BIS mark has been produced and tested against the Bureau of Indian Standards requirements, which cover dimensional accuracy, chemical composition and mechanical strength.
For a buyer, this translates into a few practical assurances. First, the MS angle section dimensions chart supplied by the manufacturer will match what actually arrives on site, so your fabrication drawings stay accurate. Second, consistent chemical composition means predictable weld behaviour, which matters when steel angle for fabrication work involves multiple joints. Third, properly straightened, defect free lengths reduce wastage during cutting and shaping.
Always ask for BIS certification details and mill test certificates before committing to a large order, particularly for structural steel angle that will carry real load, such as gate frames or staircase supports.
Choosing a Reliable MS Angle Supplier
Once you have settled on the correct MS angle size, the next step is choosing where to buy it. A few things worth checking with any supplier:
- Does the supplier stock the full range of sizes, from 19 × 19 × 3 MM up through 65 × 65 × 6 MM, so you are not forced to compromise on your fabrication design?
- Can they provide BIS certification documents and confirm compliance with IS 2062:2011?
- Do they offer consistent, up to date pricing rather than outdated rate cards?
- Is delivery available within a reasonable timeframe for your project schedule?
Final Thoughts on Picking the Right MS Angle Size
Selecting the right MS angle size comes down to matching the section to the actual load, span and application, confirming that the steel meets IS 2062:2011 and carries valid BIS certification, and comparing MS angle price in India across a few verified suppliers before placing your order. A well chosen MS angle size, backed by properly certified steel, gives your gate, grill, staircase or structural frame the strength and finish it needs to last for years without unnecessary extra cost.
Frequently Asked Questions
What is the standard MS angle size used for home gates and grills?
For home gates, window grills and light fabrication work, 25 × 25 × 3 MM and 30 × 30 × 3 MM are the most commonly used MS angle sizes in India. Heavier main gate frames often move up to 40 × 40 × 5 MM for extra strength.
How is MS angle size measured and written?
MS angle size is written as leg length × leg length × thickness, all in millimetres, such as 50 × 50 × 5 MM. Both legs are usually equal in standard L angle sections, and the thickness figure indicates the steel gauge of the angle.
What is the difference between MS angle and steel angle?
MS angle and steel angle refer to the same product. MS stands for mild steel, so mild steel angle, MS angle and steel angle are used interchangeably in the Indian construction and fabrication industry to describe the same L shaped structural section.
Does MS angle price in India change with size?
Yes. MS angle price in India is generally calculated per kilogram, and larger, thicker sections weigh more per metre, so the total cost rises with size even if the rate per kilogram stays similar. Order quantity, location and current raw material cost also affect the final MS angle section price.
Why should I choose BIS certified MS angle over uncertified steel?
BIS certified MS angle has been tested for dimensional accuracy and mechanical strength against Bureau of Indian Standards requirements, giving you a reliable match between the MS angle section dimensions chart and the actual delivered steel. This reduces the risk of weak welds, inconsistent sizing and structural weakness, particularly in load bearing applications.
