Why does starting steel quality matter so much for a gate?

It bears constant hinge load and gets opened and closed for years, so any inconsistency in the raw steel tends to show up as sagging or misalignment eventually.

What sections make up a typical main gate design?

Usually Gate Channel for the frame, MS Angle for corners, MS Flat for decorative bands, and MS Square for picket infill.

Which gate channel size works best for automated sliding gates?

CHG 40 (40mm depth, 5.0mm web), built for continuous motor load without twisting or sagging.

Does a main gate need regular maintenance?

Yes, periodic checks on hinges, welds and paint are good practice, though straight, primary-grade steel with a proper primer cuts down how often major touch-ups are needed.

Application • Gates & Entrances

Steel Main Gates & Entrances: Built to Outlast

Your main gate is the first thing anyone sees before they reach the front door, and the last barrier between your home and the street. It needs to look right, swing smoothly for years without sagging, and handle the sun, rain and daily use.

Gate Channel Purpose-Built

For frames and sliding tracks

BIS Certified Throughout

IS 2062 standards, every bundle

Automated Cooling Beds

Straight, flat-ended channel every time

72+ Years Legacy

SRMB Srijan, ISO 9001/14001/45001

Why It Matters

Why Your Main Gate Needs the Toughest Steel

Of everything built from steel around a home, the main gate probably takes the hardest beating. It bears its own weight on a hinge point every single day, gets opened and shut repeatedly, sometimes forcefully, and sits fully exposed with no overhang for shelter in most homes.

A frame built from warped or inconsistent channel is harder to weld square in the first place, and any weakness at the hinge points shows up as sagging or misalignment before its time. That is why the channel used for the frame matters as much as the design.

A gate that starts from straight, dimensionally consistent Gate Channel is easier to build square, and stays square for far longer than one built from stock that needed correcting before a single weld was struck.

RealEdge's Gate Channel sections are purpose-rolled for gate frames and sliding tracks, cast from our own primary billets and finished on automated European block mills. Every length is straight, fin-free and dimensionally consistent before it reaches the shop.

Design Ideas

Popular Main Gate Designs

From modern minimalist to traditional double-leaf — every design starts with the right steel underneath.

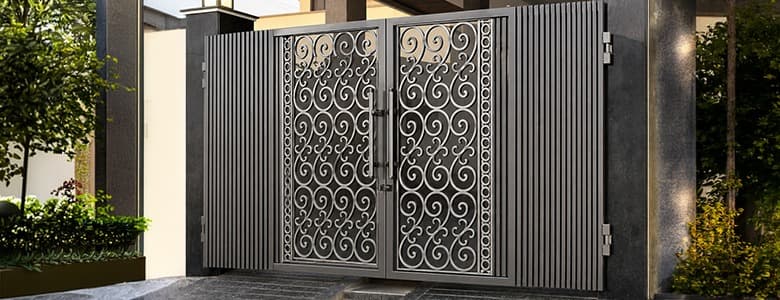

Modern Horizontal Band

Clean horizontal MS Flat bands in a Gate Channel frame. Suits villas and gated communities.

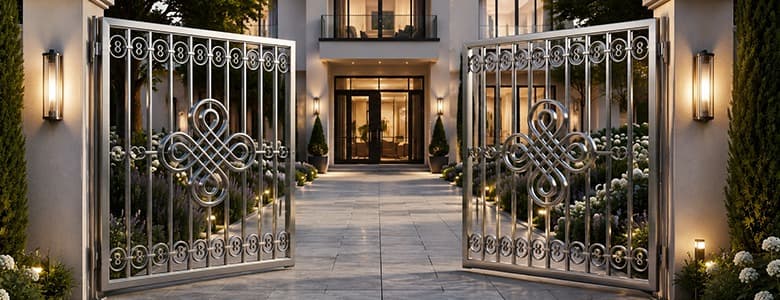

Traditional Double-Leaf

Symmetrical double-leaf with decorative MS Flat scrollwork. Top choice for larger properties.

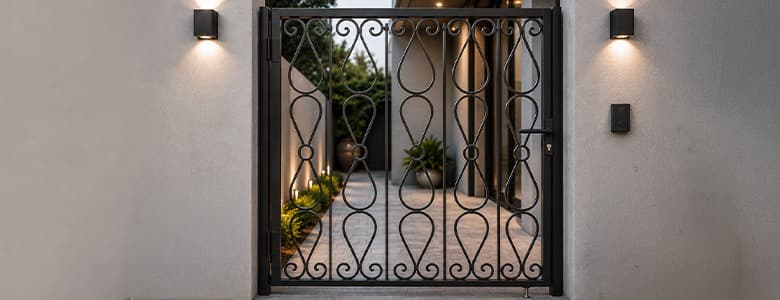

Single Door Picket

Gate Channel frame with MS Square pickets. Simple, secure, budget-friendly for narrow driveways.

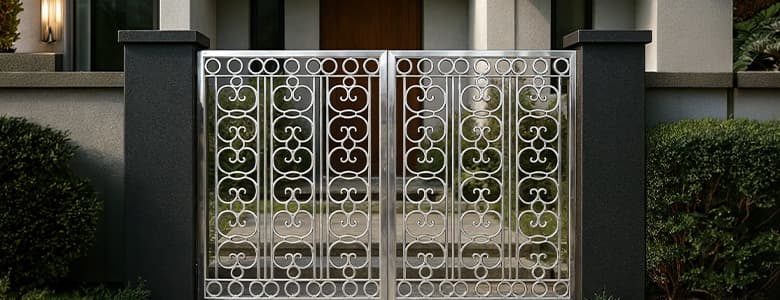

Privacy + Design Combo

Solid MS Flat lower panel with open decorative upper section for privacy and visual interest.

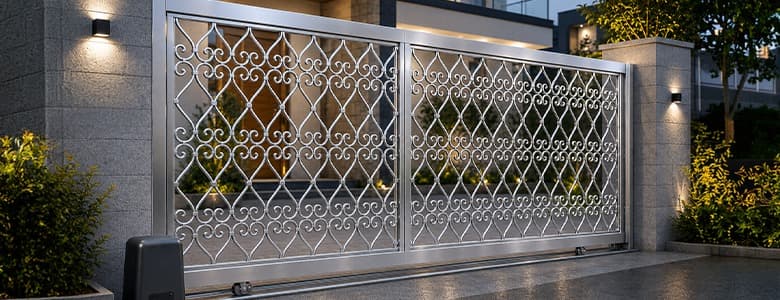

Sliding Gate

Gate Channel for track and frame where straightness directly affects glide smoothness.

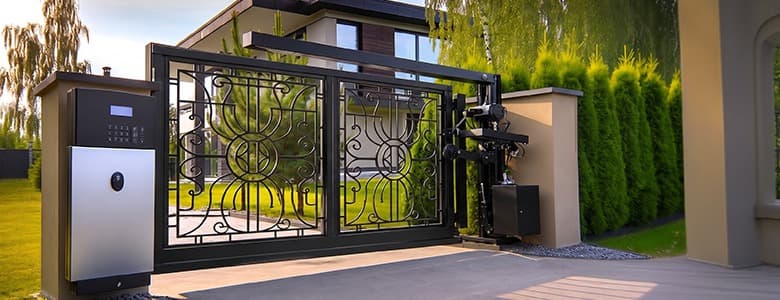

Automated Sliding (CHG 40)

CHG 40 channel (40mm depth, 5.0mm web) for continuous motor-driven movement.

Sections Used

Steel Sections for Gate Fabrication

RealEdge's range covers all four key sections, rolled to the same primary-steel standard.

Gate Channel

The frame and, where needed, the sliding track

MS Angle

Structural corners and hinge-mounting points

MS Flat

Decorative bands, borders, solid infill panels

MS Square

Picket infill and fine detailing

Fabrication Guide

Building It Right, First Time

Measure Precisely, Size Correctly

Measure the opening precisely, size the Gate Channel frame to the gate's total weight, and reinforce hinge points properly. Set hinge posts in a concrete foundation deep enough to bear the combined weight.

Use a Jig Bed for Welding

Tack-weld the outer frame on a level jig bed before running full welding passes. It stops thermal expansion from pulling the frame out of square as it cools.

Surface Prep Before Priming

Descale weld joints, especially at hinge points where stress concentrates, and prime with a zinc chromate primer soon after welding.

Primary Steel Advantage

Starting from a clean, consistent, primary-grade surface gives primer a far better base to hold onto than the pitted surface typical of lower-grade channel.

Maintenance

Keeping Your Gate in Good Shape

Oil the hinges every few months, especially before the monsoon, to keep them moving smoothly and to push out any moisture that has worked its way in. Check the paint at the base rail and hinge points once a year, since that is where wear and ground moisture tend to concentrate first.

Touch up small chips as soon as you spot them rather than waiting for the next repaint cycle. A gate built from RealEdge's straight, BIS-certified, primary-grade Gate Channel starts stronger on day one and holds its finish longer afterward.

Smart Investment

The Real Cost of Getting Steel Right

A main gate is often one of the bigger single steel purchases a homeowner makes, which makes it tempting to focus on the upfront gate channel price per kg rather than the cost over its working life. A frame welded from warped or inconsistent channel is more likely to develop hinge misalignment over time, along with surface defects that shorten the life of whatever paint finish goes on top.

A gate built from RealEdge's straight, BIS-certified, primary-grade Gate Channel and MS sections starts stronger on day one: a frame that goes together square, stays square, and gives its paint job a genuinely clean surface to hold onto. For a fixture that swings open and shut, rain or shine, for twenty years or more, that is usually the comparison that matters more than the initial invoice.
